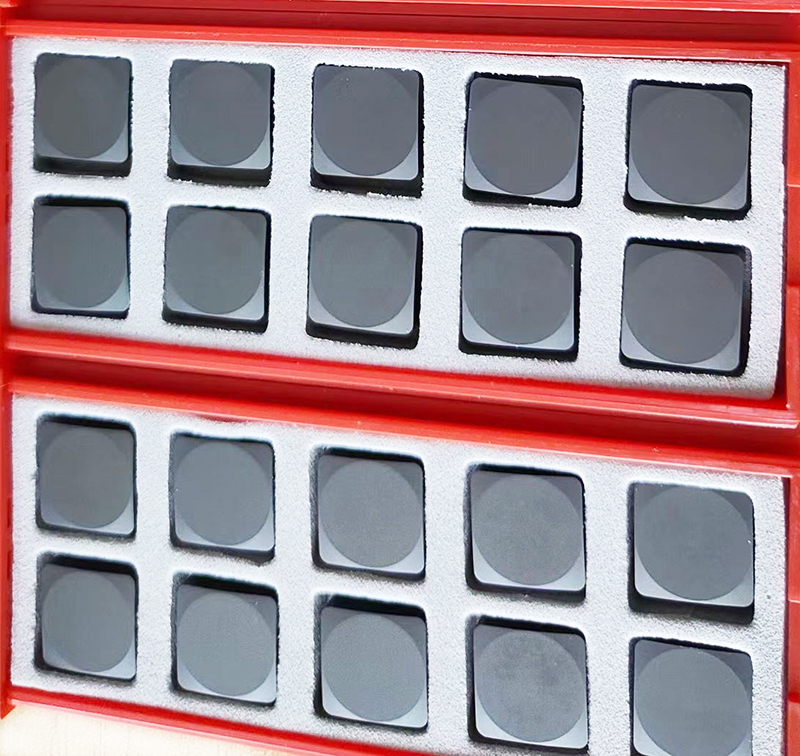

Solid CBN Inserts with Wiper
Solid CBN Inserts with Wiper

Solid CBN Inserts with Wiper

Product ID : SNEN SNEX
Product Tags : Solid CBN Inserts
Product Attributes :

Hot types: SNEN09040408 ENS, SNEN090412 ENS, SNEX120408ZZ, SNEX120412ZZ

Product Description

SNEN SNEX -  Wiper Solid CBN Inserts, Solid CBN Inserts for Milling

Solid CBN Inserts are made of cubic boron nitride micro powder under the process of super high temperature and high press, Solid CBN inserts are widely used in processing chilled cast iron, white cast iron, high manganese cast iron, high chromium and nickel alloy cast iron, hardened steel, powder metal, hard alloy and some other super alloy. Solid CBN inserts have greatly reduced the comprehensive production cost, also greatly improved the production capacity and efficiency during the whole production operation.

Grade of Solid CBN Inserts


Cutting Edge of Solid CBN Inserts

Chamfer and Wiper can all be customized

Advantages of Solid CBN Inserts:

1.    Excellent wear resistance, impact resistance, thermal stability and chemical stability of metal processing;

2.    Excellent cost performance, 30%~50% saved compare to carbide inserts;

3.    Excellent surface quality, turning instead of grinding;

4.    Solid material ensures high degree of mechanical strength;

5.    Superior cutting tool material with extreme hardness conditions;

6.    Lower machining cost and fewer tool changes;

7.    High machining efficiency with 5~10 times of carbide and ceramic inserts.

Applications of Solid CBN Inserts:

Weino Solid CBN Inserts can be widely used in lots of industry, such as auto parts, roll industry, gear industry, bearing industry, wind power generation, air conditioning compressor and others, the materials of their workpieces are mostly cast iron and hardened steel:

Cast Iron: Automotive Engine, Brake Disc, Brake Drum, Pulley, Cylinder Block, Cylinder liner, Pump, Cast Iron Rolls…

Hardened Steel: Industrial Gears, Wind Power Bearings, Bearings, Drive Shaft, Crushing Hammer Cylinder, Slurry Pump, Rolls...
